CNC Busbar Bending Machine

NC.40Z-1200 CNC Copper busbar Bending machine copper bending tool

description：NC.40Z-1200 CNC Copper busbar Bending machinecopper bending toolFunction Introduction:●● 1.The series of machine uses oil pressure as the active force,CNC as control unit, matching our independentresearched and developmented CAD/CAM system, with the charactors of high efficiency and highauto

AI summary

NC.40Z-1200 is a CNC busbar bending machine for batch production of switchgear and transformer busbars. Automatic springback compensation holds the same angle on every part of a batch. We recommend it wherever manual bending produces angle scatter and a high rework share. Delivery includes the CE declaration, installation, operator training and a 12-month warranty.

Measured data

Test conditions: Copper Cu-ETP (99.9% Cu), busbar 10 x 100 mm, 90 degree bend, workshop temperature 20 °C, batch of 300 pieces, same tooling throughout.

Measured values: Bending force 400 kN, angle deviation ±0.2°, position repeatability ±0.10 mm, cycle time 6 s per bend, angle scatter across the batch 0.3°, no manual compensation recalculation.

Comparison baseline: Baseline: manual bender ±1.5°, angle scatter across the batch 2.5°, cycle 45 s per bend including measuring.

NC.40Z-1200 CNC Copper busbar Bending machine copper bending tool

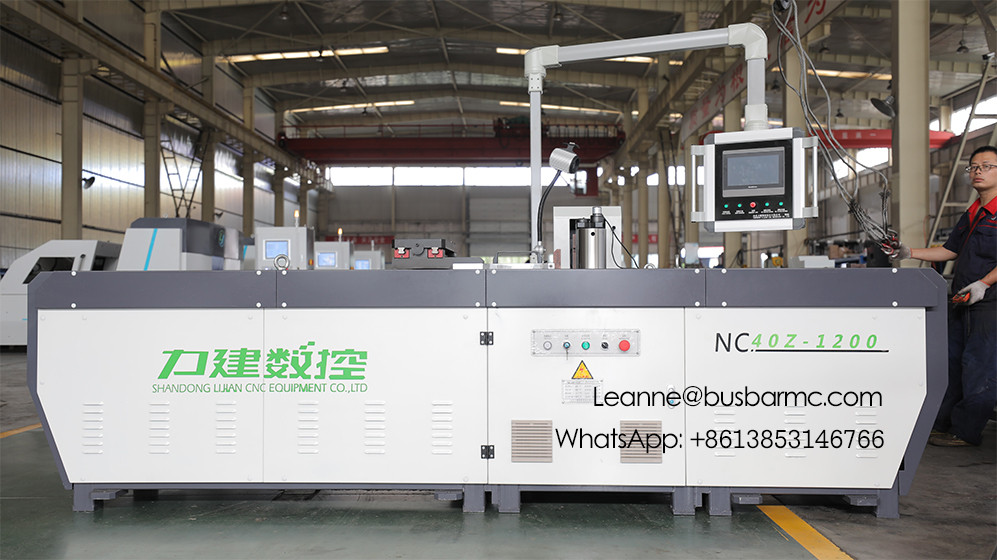

busbar bending machine

Function Introduction:

●● 1.The series of machine uses oil pressure as the active force,CNC as control unit, matching our independent

researched and developmented CAD/CAM system, with the charactors of high efficiency and high

automation.

●● 2.Adopting the "open type bending" structure,structure simple, stress reasonable,easy to charge and

discharge materials ect.

●● 3.Hydraulic part with the "two speed feed"when improving the efficiency of the processing,making the

accuracy of the bending ensured.

●● 4. Through the "pull type rotary encoder" test cylinder position to finish the processing operation.

●● 5.The gauge adopts modularization design.,can choose the length of the gauge according to demand.The

bridge structure of the "double linear guide" is used in the gauge section.Running smoothly.

●● 6.HMI,Operating easily,real-time present operating state of the program.

●● 7.Can connect with MX602K-7C CNC busbar punching cut t ing machine by CNC programming

software,operating simply,machine and software not influence each other,easy to maintain.

●● 8.Hydraulic hose adopts national standard A connection mode,easy to connect,firm and durable.

Item	NC.40Z-1200	NC.40Z-2000
Nominal Pressure	400kns	400kns
Hydraulic Cylinder Stroke	250mm	250mm
Main Motor Power	5.5kw	5.5kw
Gauge Length	1200mm	2000mm
Gauge Accuracy	+/-0.15	+/-0.15
Bending Accuracy	+/-0.3°	+/-0.3°
Horizontal Bending Maximum Size	15×160mm	15×200mm
Verticall Bending Maximum Size	12×120mm	12×120mm
Weight Of Machine	2500kgs	2700kgs
Machine Size	3500×1450×1850mm	4300×1450×1850mm
